Sucker, adjustment, pony rods

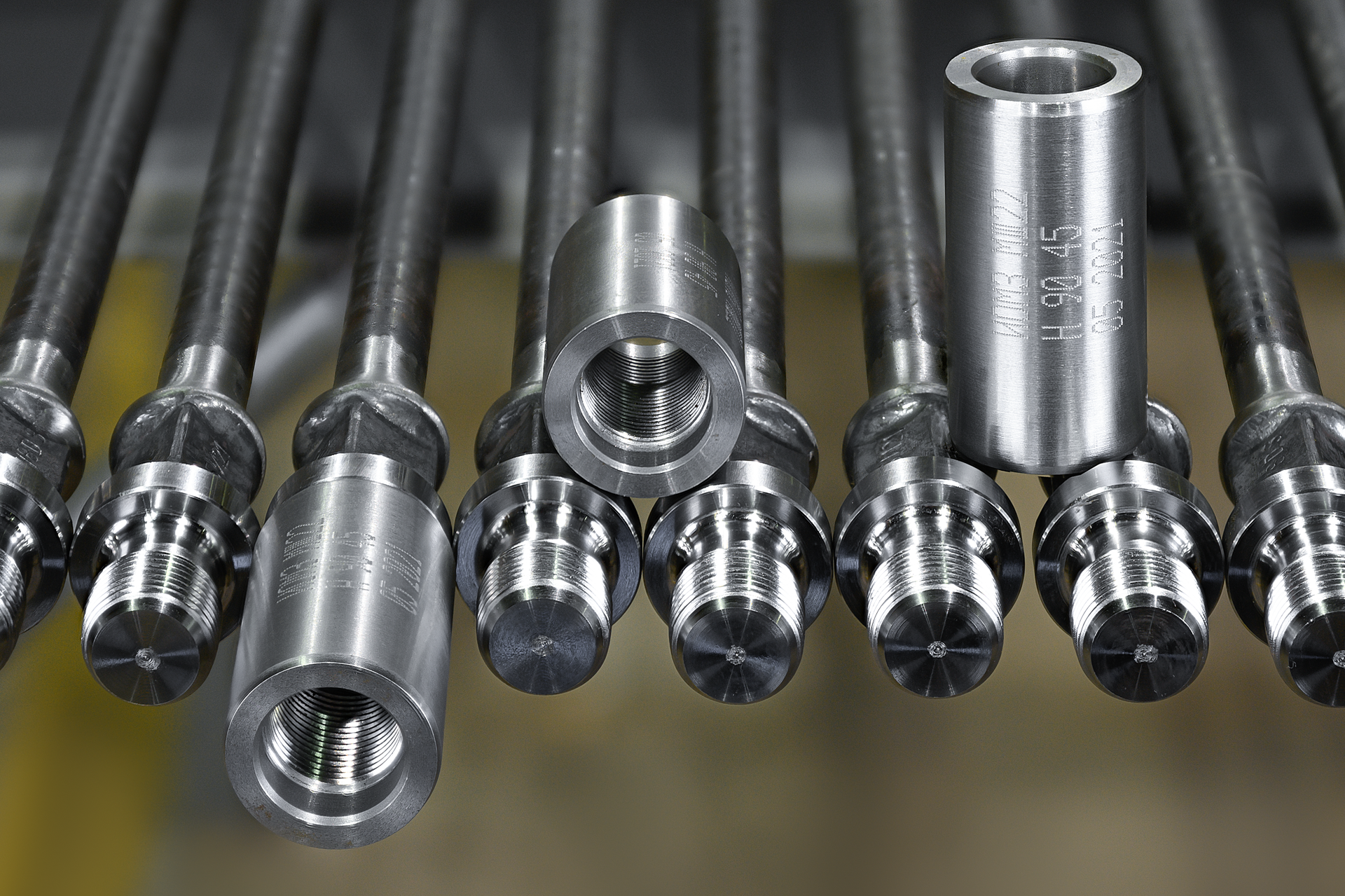

A line of sucker rods is used to transmit reciprocating motion from a drive to a borehole-pump plunger. It is assembled from individual rods connected by means of couplings.
We produce sucker rods
Size
16, 19, 22, 25
Diameter
16 to 25.4 mm
Length
500 to 9,140 mm
Advantages of our sucker rods
- made of patented steel 18KhGNFT as per TU 14-1-5668-2019, featuring higher strength properties, and other steel grades: - structural steel (38KhGMFT as per TU 14-1-5556-2007, 15N3MA as per TU 3-850-80, ATs28KhGN3FT as per TU 14-1-4398-88);
- corrosion-resistant steel (05Kh16N4D2B as per TU 14-1-5518-2005) - high-temperature thermomechanical treatment of the billets
- 100 % dimensional inspection
- all rolled metal products are subjected to non-destructive testing
The enterprise has introduced a process to restore waste sucker rods 7/8’’ (22) and 1’’(25) to sucker rods 3/4’’ (19) and 7/8’’ (22), respectively, which allows for efficient repair of the sucker rods and output products that fully conform to quality standards of GOST 31825-2012 and have full operating life.
Notes
There is a possibility to build up scratchalizers on sucker rods.

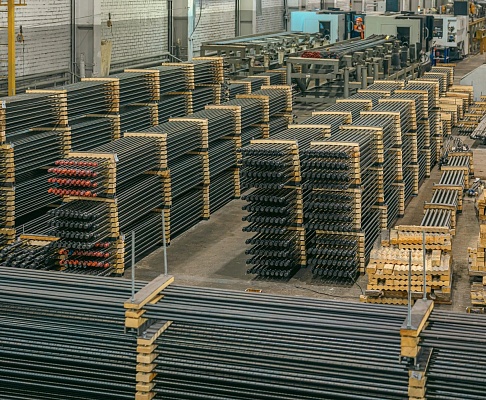

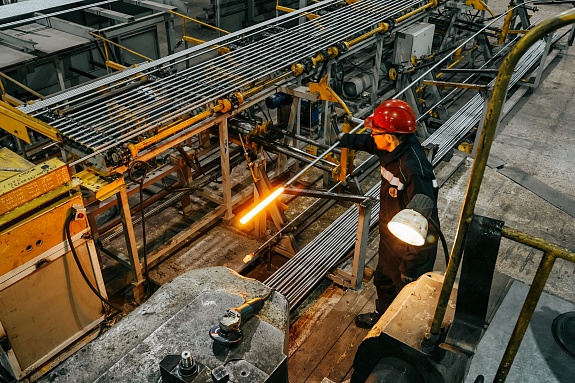

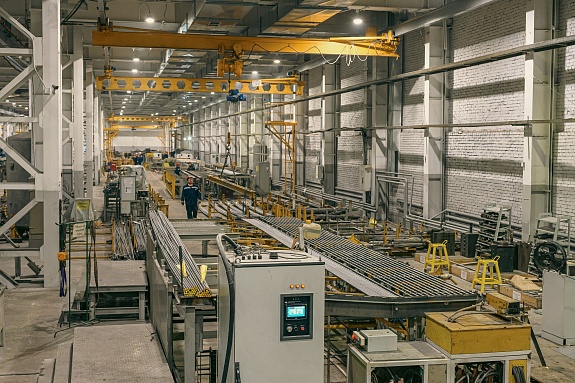

Sucker Rod Production Workshop
Quality and durability — the key to the success of our products
Become a client
We are an experienced factory that is ready to develop new technologies to meet the customer's technical requirements.
