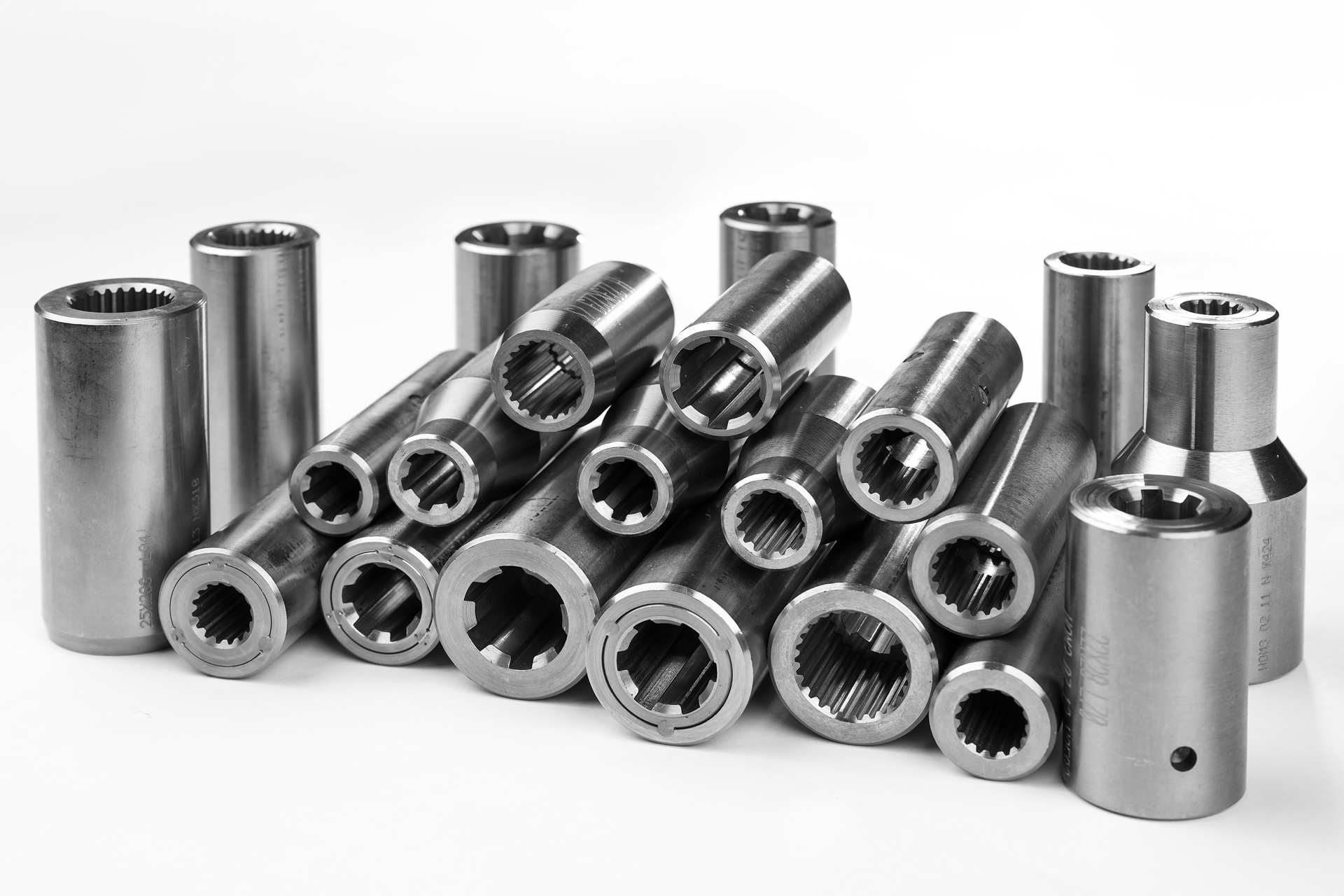

Spline assembled and solid joint couplings
We produce couplings for ESP units
Outer diameter
20 to 65 mm
Length of solid couplings
max. 94 mm
Length of assembled couplings
max. 110 mm
Spline assembled and solid couplings are designed to connect sections of ESP units
- with internal involute splines Ø14-38, (the profile conforms to GOST 6033, module m=1 and m=2)
- with internal straight-sided splines Ø14-42
- with combined splines (of various diameters)
- with additional heat treatment 28…32HRC
Coupling material
- alloy, structural, and high-strength stainless steel 40Kh13 and 05Kh16N4D2B
- nickel-based Alloy K-500 with high strength characteristics and corrosion resistance properties
The couplings are produced according to the customer's and our enterprise’s drawings.

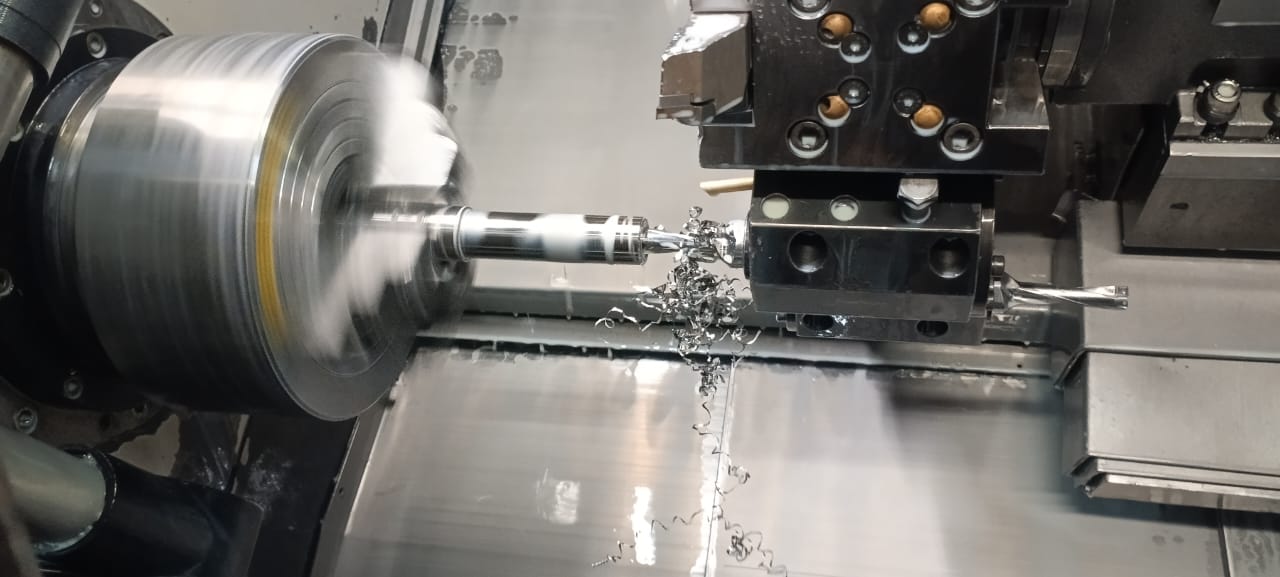

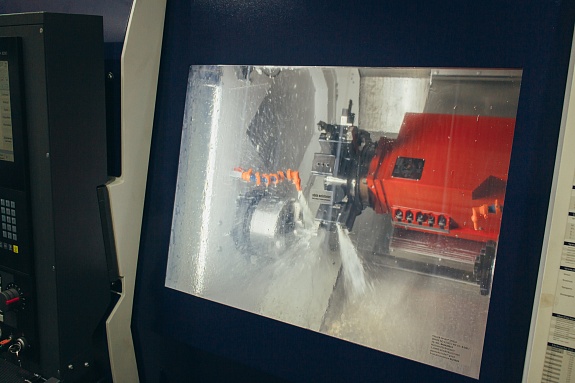

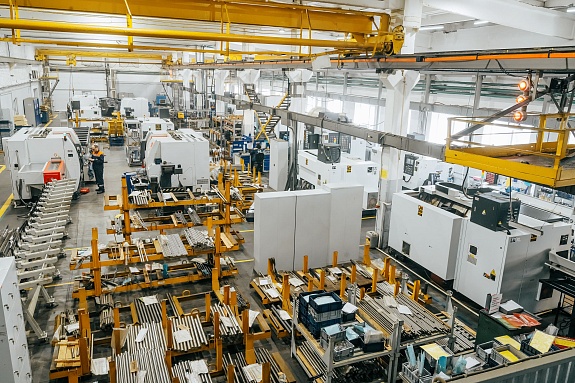

Coupling Production Facility
Quality and durability — the key to the success of our products
Become a client
We are an experienced factory that is ready to develop new technologies to meet the customer's technical requirements.
