Pump shafts for ESP, ESM, FPM pumps
We produce pump shafts for ESP, ESM, FPM pumps
Length
up to 10 m
Diameter
10.0 to 50.0 mm
Straightness
0.05 to 0.1 mm
Accuracy
degree 8 and 9
Intended for oil-field equipment
- for electrical submersible pumps (ESP)
- for electrical submersible motors (ESM)
- for knockout drums and seal sections

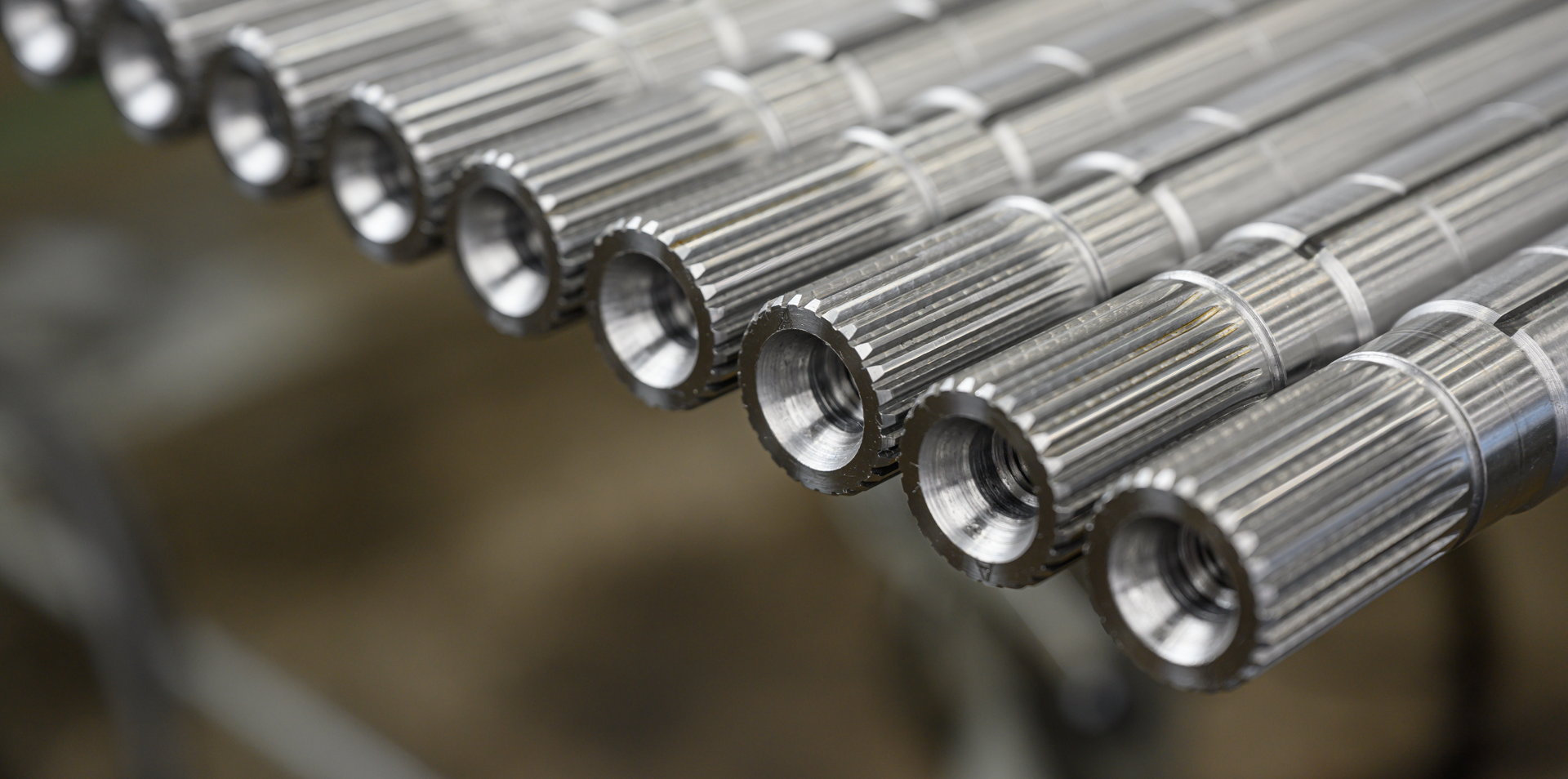

The shafts are produced according to the customer's drawings with straight-sided, involute, or combined splines

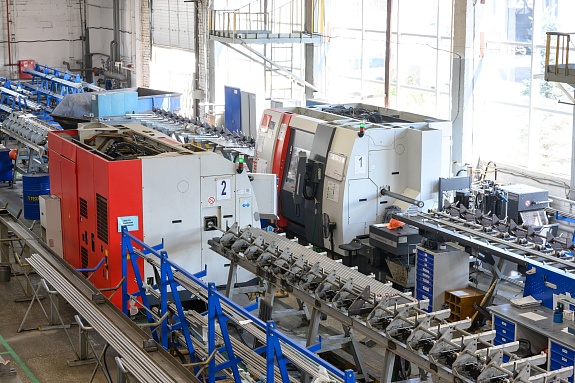

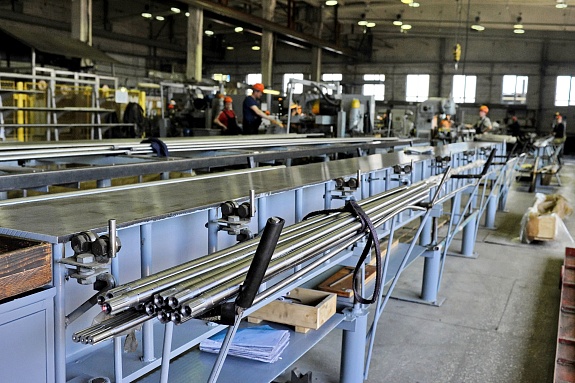

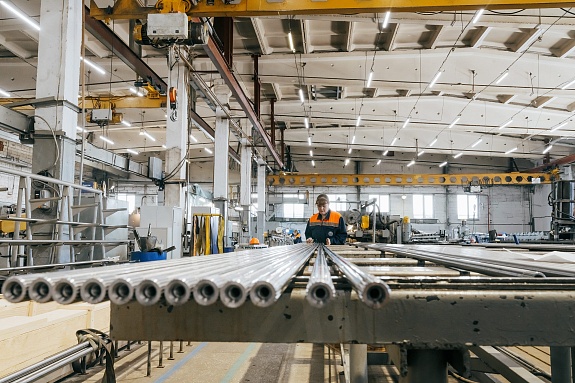

Shaft production workshop
Material grade
| Material grade | Technical specifications | Yield strength |
|---|---|---|
|
18KhGNFT 38KhGMFT |
TU 14-1-5668-2019 TU 14-1-5556-2007 |
up to 120 kgf/mm2 up to 120 kgf/mm2 |
|
05Kh16N4D2B 10Kh15G12 |
TU 14-1-5518-2005
|
up to 160 kgf/mm2 up to 180 kgf/mm2 |
|
Alloy K-500, Alloy 925, Alloy 718 10Kh23AG12N5M3 |
TU 14-1-5649-2015
|
up to 140 kgf/mm2 up to 180 kgf/mm2 |
Notes
The steel grades used are patented.
Stepped-type shafts with the diameter of up to 110 mm and the length of up to 1,200 mm can also be produced.
Quality and durability — the key to the success of our products
Become a client
We are an experienced factory that is ready to develop new technologies to meet the customer's technical requirements.
